Video Game For STM32F429ZI

A video game for the Discovery kit with STM32F429ZI. In the game you control a car with the touch screen. Tilemapped graphics, vehicle and collision physics. The source code is available here.

Video of the game:

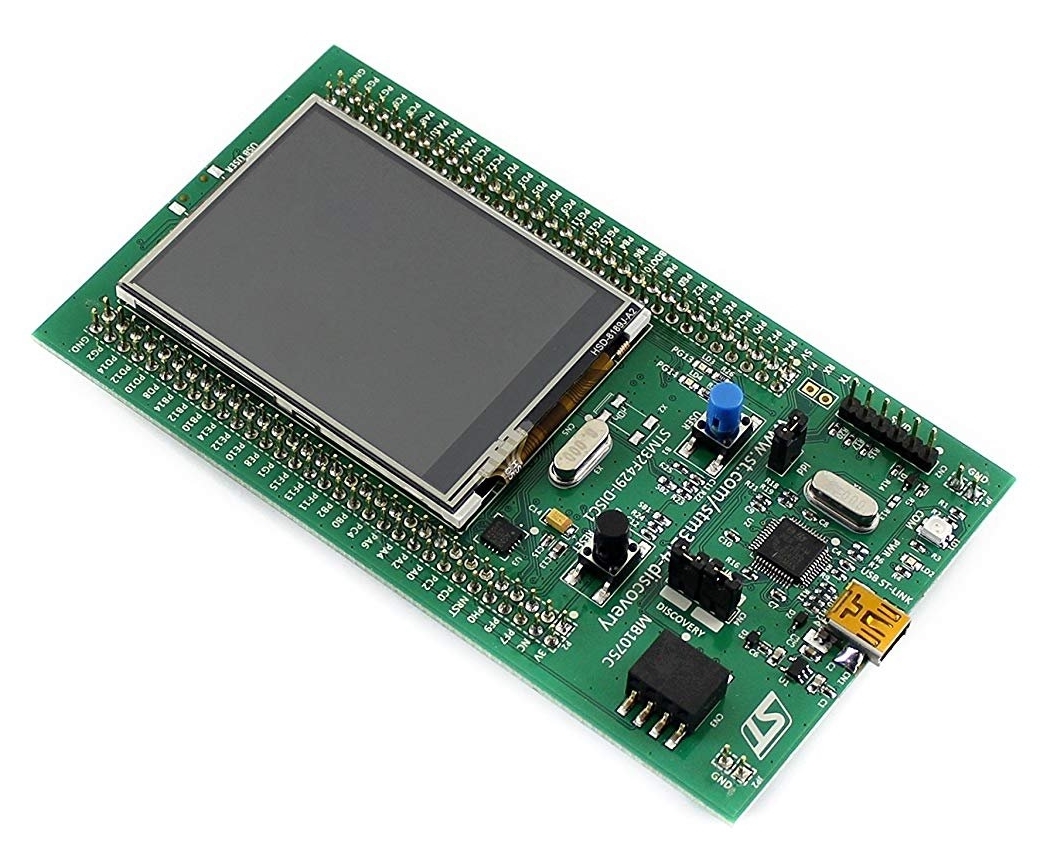

The development board has a touch screen and accelerometer:

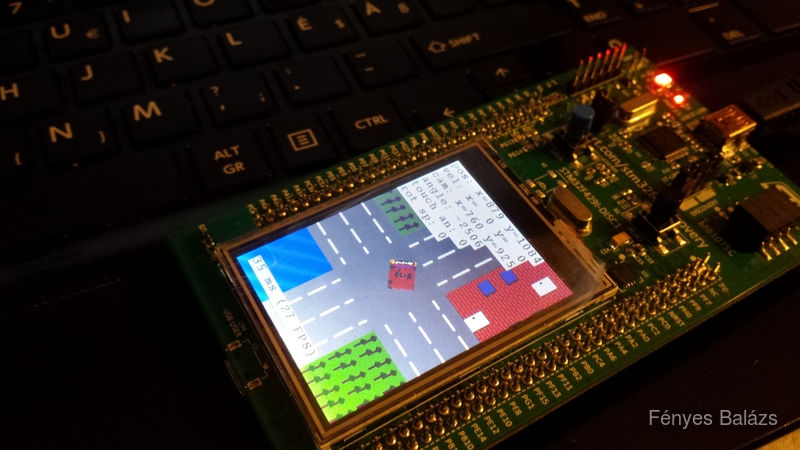

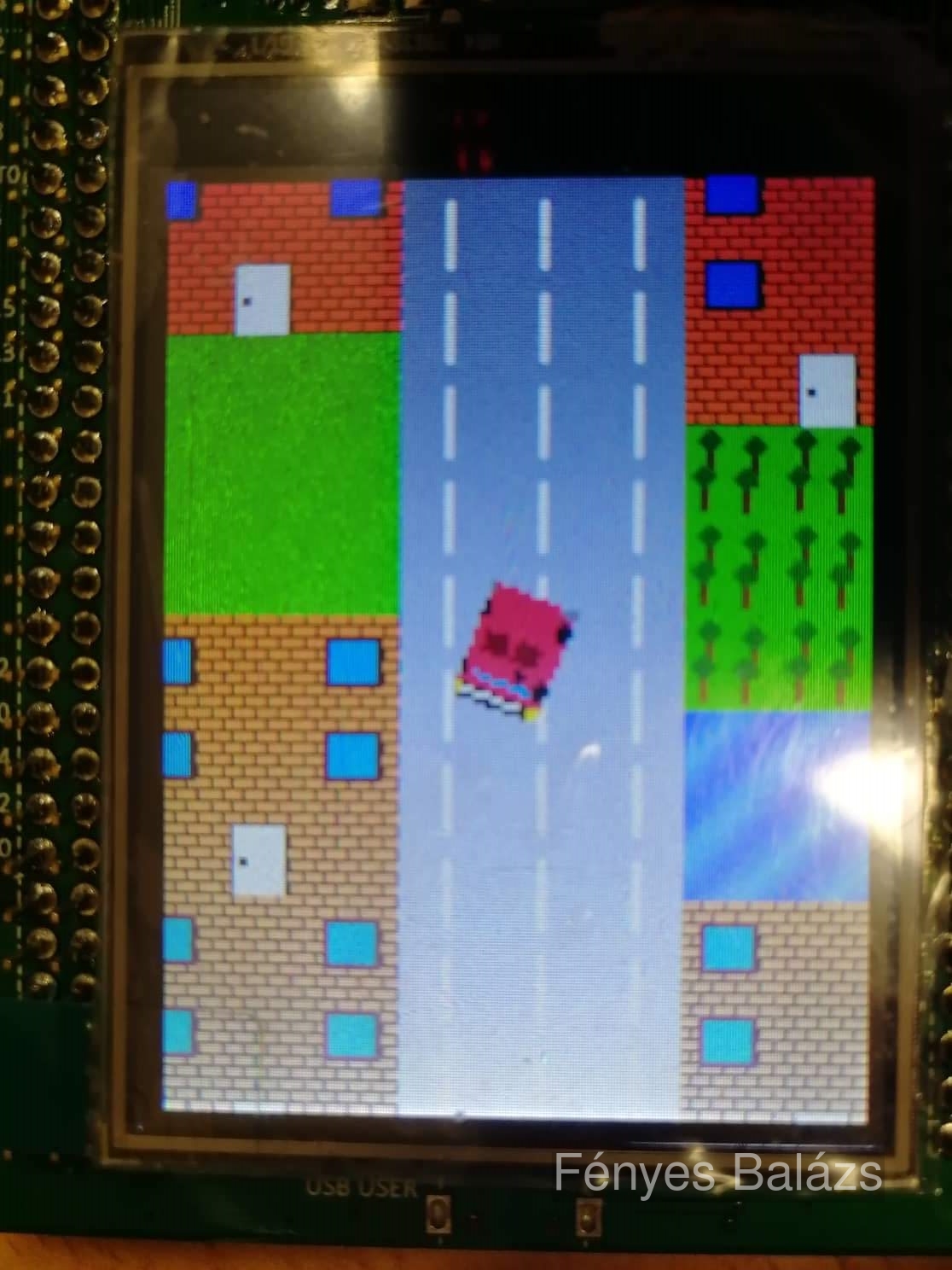

Photos of the game:

Tilemapping

The map is a rectangular array of indicies, each index indicates which texture to draw at that location.

The tileset:

The palette:

The map:

//Draw the map
void draw_map(int cx, int cy)
{
    int startx = max(0, cx / TILE_SIZE);
    int starty = max(0, cy / TILE_SIZE);
    int endx = min(MAP_WIDTH-1, (cx+SCREEN_WIDTH) / TILE_SIZE);
    int endy = min(MAP_WIDTH-1, (cy+SCREEN_HEIGHT) / TILE_SIZE);
    for (int x = startx; x <= endx; x++)
    {
        for (int y = starty; y <= endy; y++)
        {
            draw_tile(map[y * MAP_WIDTH + x], x * TILE_SIZE - cx, y * TILE_SIZE - cy);
        }
    }
}

//Draw one tile
void draw_tile(int ix, int offsetx, int offsety)
{
    if (offsetx <= -TILE_SIZE || offsety <= -TILE_SIZE || offsetx >= 240 || offsety >= 320)
    {
        //tile is out of screen, don't draw anything
        return;
    }
    else if (offsetx >= 0 && offsety >= 0 && offsetx < 240 - TILE_SIZE && offsety < 320 - TILE_SIZE)
    {
        //tile is fully inside the screen
        BSP_LCD_DrawBitmap_Tile32(offsetx, offsety, ix, &tilemap);
    }
    else
    {
        //tile is partially in the screen, check each pixel
        for (int i = 0; i < TILE_SIZE; i++)
        {
            for (int j = 0; j < TILE_SIZE; j++)
            {
                if (offsetx + i >= 0 && offsetx + i < 240 && offsety + j >= 0 && offsety + j < 320)
                {
                    BSP_LCD_DrawPixel(offsetx + i, offsety + j, tilemap[i + ix * TILE_SIZE * TILE_SIZE + j * TILE_SIZE]);
                }
            }
        }
    }
}

Collision physics

Calculate the distance from every nearby tile and if they are too close, push the car in the opposite direction.

void simulate_collision() {
    int startx = max(0, (int)(px / TILE_SIZE) - 2);
    int starty = max(0, (int)(py / TILE_SIZE) - 2);
    int endx = min(MAP_WIDTH - 1, (int)(px / TILE_SIZE) + 2);
    int endy = min(MAP_HEIGHT - 1, (int)(py / TILE_SIZE) + 2);
    for(int x = startx; x <= endx; x++)
    {
        for(int y = starty; y <= endy; y++)
        {
            float centerx = x * 32 + 16;
            float centery = y * 32 + 16;
            float dx = px - centerx;
            float dy = py - centery;
            const float force = 1.5;
            float d = hypot(dx, dy);
            int id = map[y * MAP_WIDTH + x];
            if(d < 100 && (id == 0 || id == 1 || id == 2 || id == 3 || id == 7))
            {
                float ang = atan2(dy, dx);
                float f = max(0, 10 - d / 4) * force;
                vx += f * cos(ang);
                vy += f * sin(ang);
            }
        }
    }
}

Car physics

The car has a position (px, py) and velocity (vx, vy) vector, also the rotation speed (omega) and the direction (phi) is stored.

void simulate_movement(int touch, float an) { //kocsi mozgásának szimulációja

    //if touched, accelerate the car
    if (touch) {
        const float acceleration = 1;

        float delta_v_touch = cos(phi) * cos(an) + sin(phi) * sin(an);

        vx += cos(an) * delta_v_touch * acceleration;
        vy += sin(an) * delta_v_touch * acceleration;
    }

    //slow down velocity
    const float resistance_linear = .05;
    vx -= vx * resistance_linear;
    vy -= vy * resistance_linear;

    const float resistance_quadratic = .01;
    vx -= (vx > 0 ? 1 : -1) * vx * vx * resistance_quadratic;
    vy -= (vy > 0 ? 1 : -1) * vy * vy * resistance_quadratic;

    //if touched, rotate the car
    if (touch) {
        const float rot_speed = .05;
        omega += angle_diff(phi, an) * rot_speed;
    }

    //slow down rotation
    const float rot_resistance = .2;
    omega -= omega * rot_resistance;

    //limit rotation
    const float rot_limit = .3;
    float rot_angle = limit(omega, -rot_limit, rot_limit);

    //rotate velocity vector
    vx = vx * cos(rot_angle) + vy * -sin(rot_angle);
    vy = vx * sin(rot_angle) + vy * cos(rot_angle);

    //move car
    px += vx;
    py += vy;

    //rotate car
    phi += omega;

    //limit rotation value to [-pi, pi]
    phi = fmod(phi + M_PI, 2 * M_PI);
    phi -= M_PI;
}
